TOPIC: JaguarBoard V1.4 is released

JaguarBoard V1.4 is released 5 years 9 months ago #1858

  • tim
  • tim's Avatar
  • OFFLINE
  • Moderator
  • Posts: 226
  • Thank you received: 30
  • Karma: 4
Hi All,

In order to meet some JaguarBoard members' needs, we released Jaguar V1.4 version.

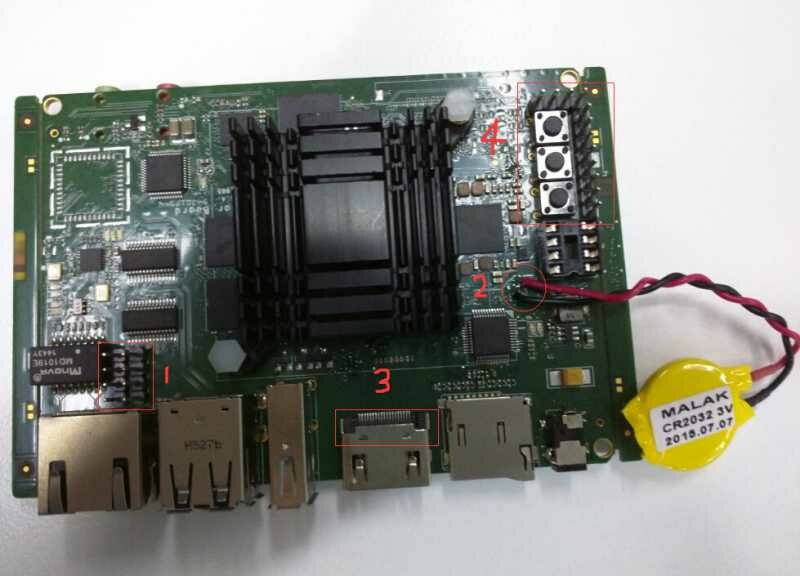

Here is the New Board and update details:



1. Add 2 sets of USB pins;
2. Add support for RTC battery;
3. Support HDMI audio for windows 8.1/10 system;

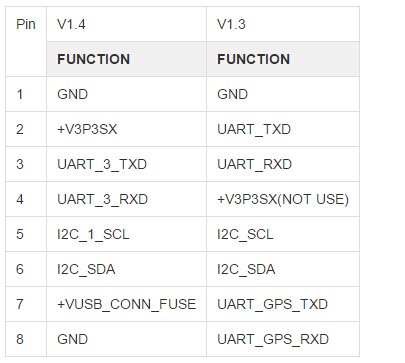

4. Change the definition of COM pins:



5. Change GPIO output from +1.8V to +3.3V and we can provide GPIO demo for windows.
6. Support Booting linux system from TF card.

wiki.jaguarboard.org:8090/display/ED/Jag...f+External+Interface
Last Edit: 4 years 3 months ago by tim.
The administrator has disabled public write access.
The following user(s) said Thank You: Linolium

JaguarBoard V1.4 is released 5 years 8 months ago #1952

  • Linolium
  • Linolium's Avatar
  • OFFLINE
  • New Member
  • Posts: 3
  • Karma: 0
Awesome! When will these boards be available to purchase, and will they be the same price as the current Jaguar One?
The administrator has disabled public write access.

JaguarBoard V1.4 is released 5 years 8 months ago #1960

  • tim
  • tim's Avatar
  • OFFLINE
  • Moderator
  • Posts: 226
  • Thank you received: 30
  • Karma: 4
Yes, same price. And it is on sale now, we will sale only v1.4 later, v1.3 is almost sold out.
Last Edit: 5 years 8 months ago by tim.
The administrator has disabled public write access.
