主题: 3D Printed Case for Your Jaguarboard

3D Printed Case for Your Jaguarboard 1 年 1 个月 前 #378

  • tim
  • tim的头像
  • 当前在线
  • Moderator
  • 帖子: 213
  • 感谢您收到 27
  • 声望: 4
sorry, negative. So hot in your place? Why need a fan seriously?
本论坛禁止游客发帖。

3D Printed Case for Your Jaguarboard 1 年 1 个月 前 #381

  • madchris48
  • madchris48的头像
  • 离线
  • New Member
  • 帖子: 13
  • 感谢您收到 4
  • 声望: 0
The cpu does get warm to the touch under load, and keeping things nice and cool is good for longevity of the components.

plus I think it looks cool

and its functional.

And because I want to. :silly:

I like to tinker and modify stuff,

any reason to not slap a fan on it?

Thanks for the info about not being able to power it through the GPIO pins though.
本论坛禁止游客发帖。

3D Printed Case for Your Jaguarboard 1 年 1 个月 前 #384

  • tim
  • tim的头像
  • 当前在线
  • Moderator
  • 帖子: 213
  • 感谢您收到 27
  • 声望: 4
OK, I think you can make the fan run on next version, we will make +5v/3.3v work.
本论坛禁止游客发帖。

3D Printed Case for Your Jaguarboard 1 年 1 个月 前 #481

  • madchris48
  • madchris48的头像
  • 离线
  • New Member
  • 帖子: 13
  • 感谢您收到 4
  • 声望: 0

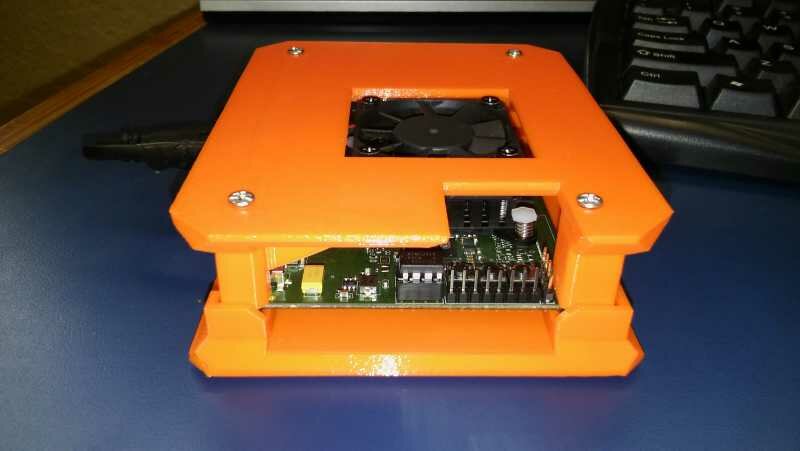

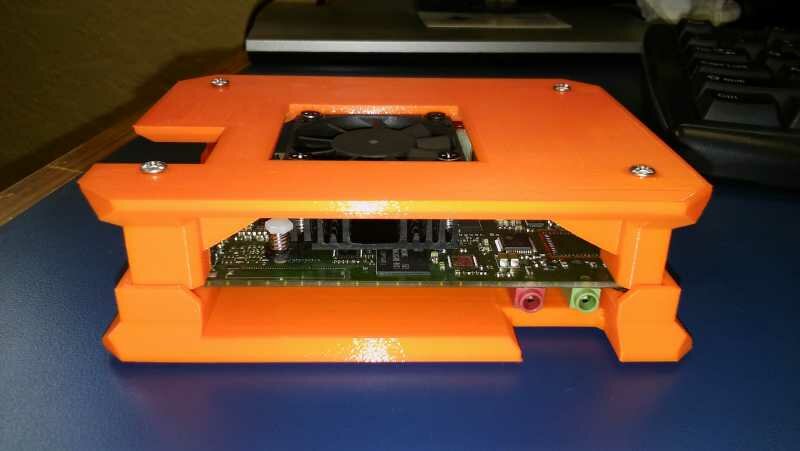

UPDATE: I've made a few more modifications to the case. Here are some pics and the new case file.

There is an .STL file and the native 123D Design file (if you wanted to edit the case further, 123D Design is a free modeling program from Autodesk.)






附件:
最后修改: 1 年 1 个月 前 由 madchris48.
本论坛禁止游客发帖。
以下用户向您表示感谢:: DJMeijer

3D Printed Case for Your Jaguarboard 1 年 1 个月 前 #495

  • tim
  • tim的头像
  • 当前在线
  • Moderator
  • 帖子: 213
  • 感谢您收到 27
  • 声望: 4
Great work! I noticed you installed a FAN, where did you get the power source?
本论坛禁止游客发帖。

3D Printed Case for Your Jaguarboard 1 年 1 个月 前 #497

  • madchris48
  • madchris48的头像
  • 离线
  • New Member
  • 帖子: 13
  • 感谢您收到 4
  • 声望: 0

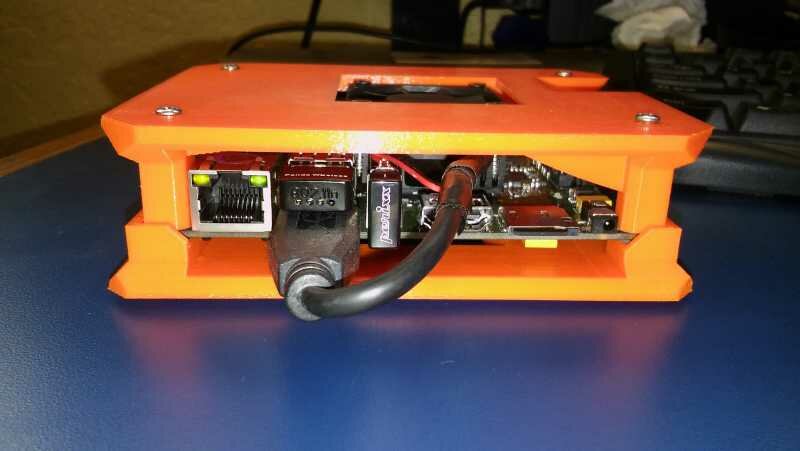

As you can see most clearly in the first picture, I just used an old USB cable, isolated the 5v and ground wires out and connected them to the fan. Works like a charm, though it takes up a USB port. So between the fan, wifi, and mouse & keyboard, the 3 USB slots are all spoken for.

That USB dongle is gonna come in handy!
本论坛禁止游客发帖。
